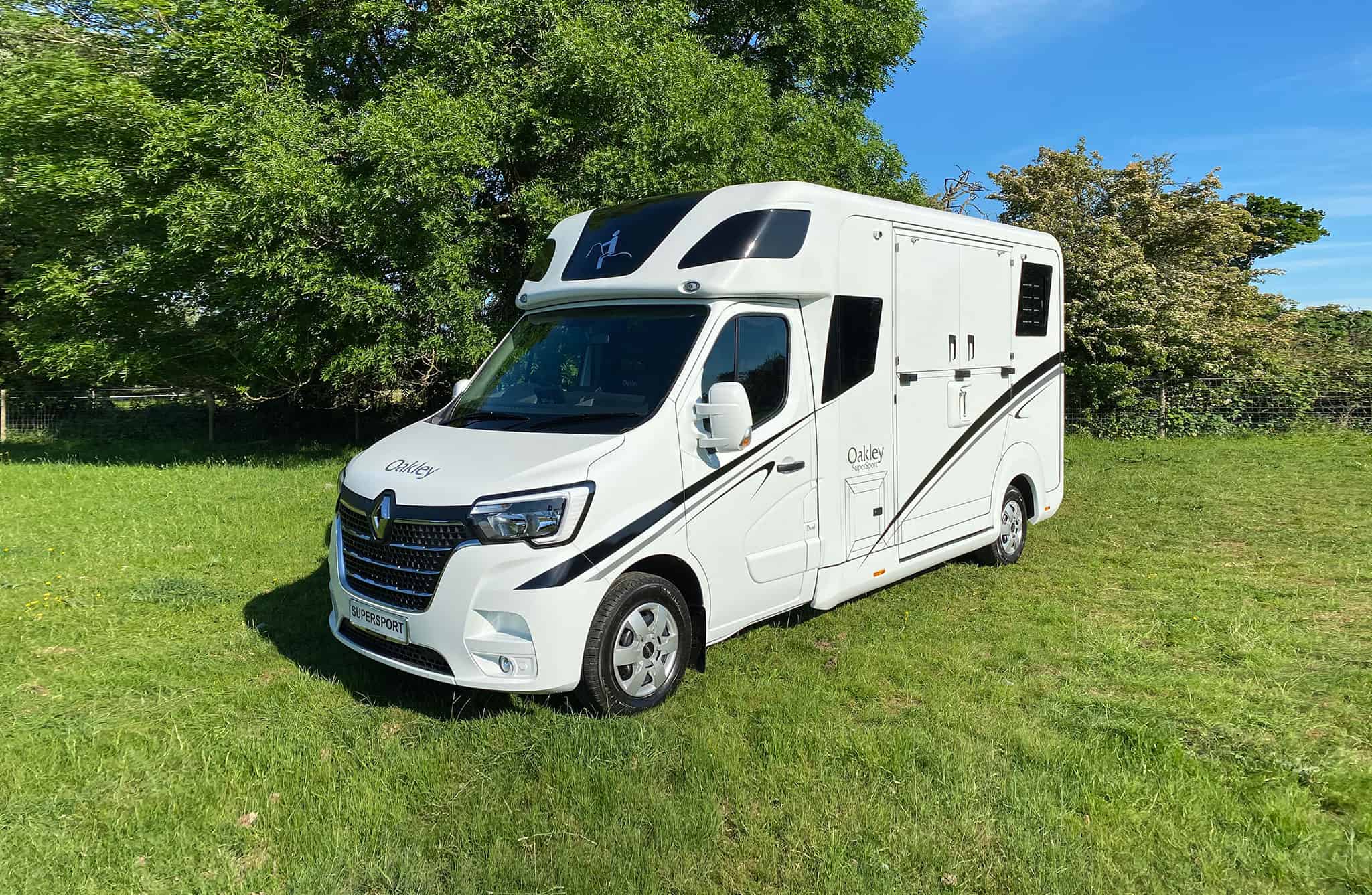

SUPERSPORT CHEST BAR 5 SEATER
“The Supersport utilises innovative lightweight technology, combined with style, craftsmanship & attention to detail.”
The New Oakley 5 seater chestbar Supersport is available as a spacious 5 seater cabin with a berth above driving area . Your horses safety is paramount to us that’s why the chest bar configuration is easily removed via a retaining pin system.
Stainless steel weaving grills are fitted for additional optional safety, these grills can be folded back out of the way when not required and also the middle V section can be in-filled for foal transportation. So your horse is equally as comfortable as you are during their journey.
The 5 seater chestbar Supersport is mounted on the all new Renault Master chassis.
It is equipped with many exclusive options as standard to bring greater comfort, efficiency and safety to the driver at the wheel throughout their working day. Standard Equipment includes; Mattress to berth above cab, Chassis Air Conditioning. USB media Port, European Satellite navigation Bluetooth phone connection Electric windows, electric and heated mirrors Tow bar with electrics (giving a G.T.W of 6,000 kg)
Supersport 3.5T (Option to upgrade to 3.9T)
Spacious, light and strong the new Oakley Supersport. Its innovative design is all about the spacious horse and cab area that sets new benchmarks for the horsebox market. Throughout the new Supersport, we’ve maximised the horse area and storage space, incorporating expanses of the beautiful design to emphasise its sleek lines.
It is equipped with many exclusive options as standard to bring greater comfort, efficiency and safety to the driver at the wheel throughout their working day. Standard Equipment includes; Mattress to berth above cab, Chassis Air Conditioning. USB media Port, European Satellite navigation Bluetooth phone connection Electric windows, electric and heated mirrors Tow bar with electrics (giving a G.T.W of 6,000 kg)
Leather seats with ‘Oakley’ Stitched into head rest. Horse Area Light weight strong rubber flooring, Minimum rear wheel arches protrusion, Electric 2 way fan, Blue travelling LED lights, Bright loading LED lights, Barn style doors, 1m wide emergency rear exit door, Opening roof vent.
A PERFECT BLEND OF DESIGN, TECHNOLOGY, STYLE, CRAFTSMANSHIP & ATTENTION TO DETAIL.
Horse Stall Area
Storage
Tack Area
Length
Width
Height
Stalls
GVW Kg
Detailed Specification
Supersport 3.5T (Option to upgrade to 3.9T)
GENERAL SPEC:
- Oakley Super Sport 2 Stall Horsebox
- Chest Bar rearward facing stalled model
- Stainless steel opening weaving grills with inserts
- 5 seater cab
- Berth above cab
- Tack / saddle area to rear
- 2 way Extractor fan / Heavy duty roof vent
- Side ramp
- Opening out doors above ramp
- Large rear door access (Emergency Exit)
- Storage locker with near/offside access locker doors
- LED lighting throughout
- Blue LED Night travel lighting
- Reverse / horse area cameras
- Bonded frameless opening windows
- Renault Master 165-180bhp (Euro 6)
- 6 speed “Quick Shift” Automatic gearbox / Manual gearbox
- Media pack to cab inc Sat Nav / Bluetooth / DAB radio
- Air conditioning to cab
- Black leather seats to cab
- 3,500 kgs G.V.W.Rear 50mm tow bar and electrics
- High Gloss Metallic paintwork
- Colour coded bumpers/wing mirrors
- Safety framed bulkhead with heavy duty aluminium planking
The Supersport utilises innovative lightweight technology, combined with style, craftsmanship & attention to detail.
- Renault Master 180bhp (Euro 6CI)
- 132 kW (180 hp) – 400 Nm Twin turbo
- Diesel fueled / Ad Blue Euro 6 CI DCI 2.3 Engine
- 3,500 kgs G.V.W.
- Approx Combined Fuel consumption 35.3 MPG / 7.5L / 100Km
- Start / stop engine technology
- 6 speed Automatic gearbox
- Cruise control
- Electric windows
- Central locking with remote
- Electrically operated mirrors and de-icers
- Media pack to cab inc Sat Nav / Bluetooth / DAB radio
- Air conditioning to cab
- Black leather seats to cab
- Drivers air bag
- Front driving lights to bumper
- Daytime running lights
- Automatic headlight and windscreen wiper activation
- ABS + ASR + ESP + Extended grip + Side Wind Assist*
- Traction control
- Rear 50mm tow bar and electrics
- High Gloss Metallic paintwork
- Colour coded bumpers/wing mirrors
- Oakley Super Sport 2 Stall Horsebox
- Chest Bar rearward facing stalled model
- Stainless steel opening weaving grills with inserts
- Aluminum / Stainless steel fittings throughout
- Fully adjustable padded sliding aluminum / stainless steel partition (3 positions)
- Removable aluminum chest bar
- Opening doors underneath chest bar to each stall
- Tie and hay net rings throughout
- Heavy duty 3-way opening roof vent
- 2-way extractor fan
- Opening bonded frameless window throughout
- Tack / saddle area to rear
- X2 saddle racks and bridle hooks
- X4 drain points to horse area and tack area all sealable
- 2 way Extractor fan / Heavy duty roof vent
- Side ramp with heavy duty rubber matting and integrated slats
- Quick release strap to ramp aperture
- 1 piece heavy duty rubber matting to floor
- Opening out doors above ramp
- Large rear door access (Emergency Exit)
- LED lighting throughout
- Blue LED Night travel lighting
- Window to back of cab with stainless steel protective bars
- Padding throughout
- Head pads to ceiling
- Rubber strap to retain partition in open position
